Presentation
| Product color | Black |
| Product type | SSD Interface Adapter |

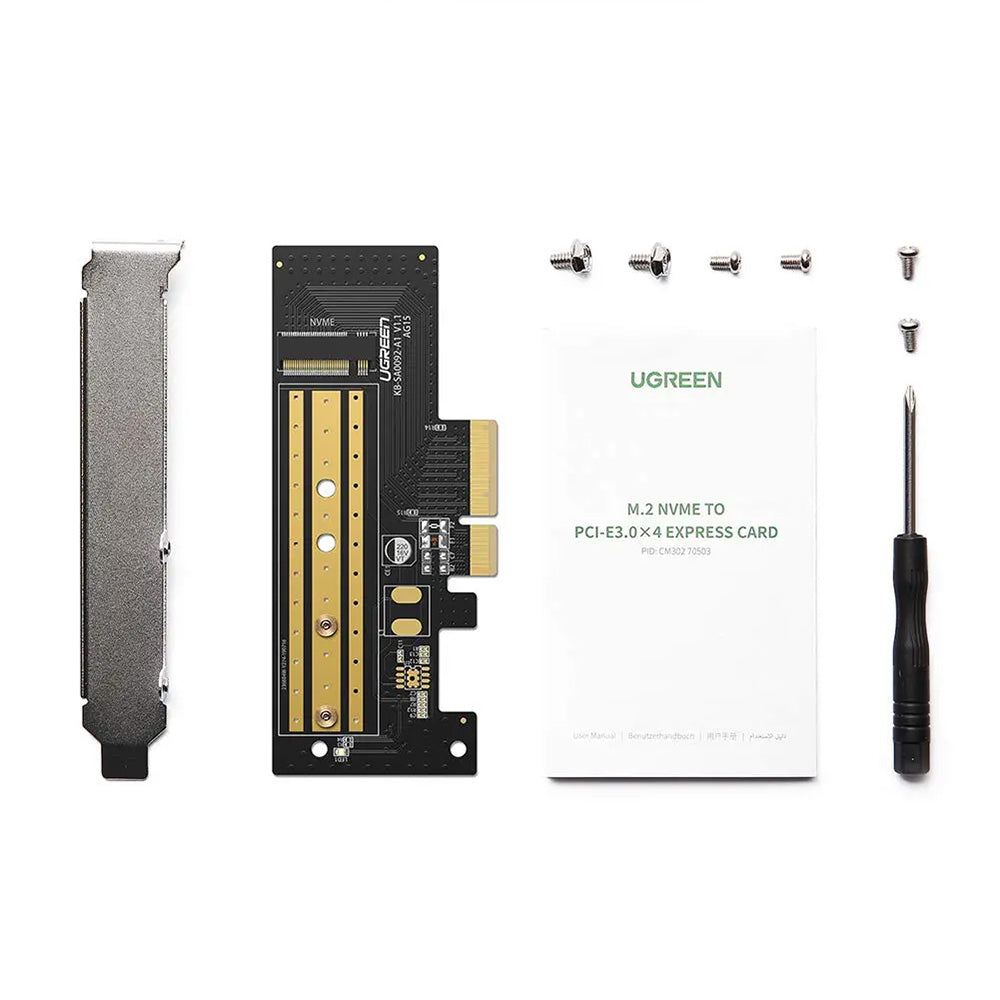

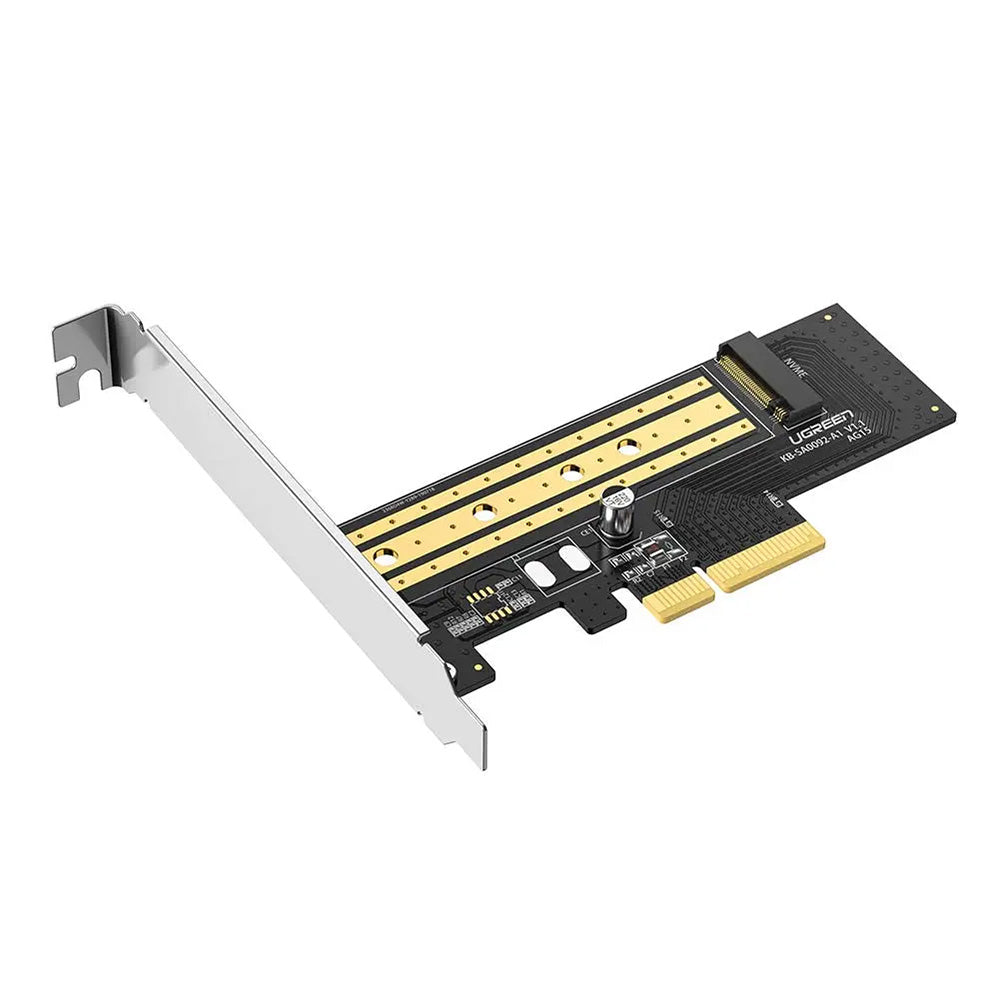

This Ugreen adapter converts a PCIe slot into an interface for M.2 NVMe SSDs, providing a performance boost to the entire system.
Quick system startup, accelerated transfers
The adapter offers a bandwidth of up to 32Gbps, sufficient to fully exploit the speeds of NVMe SSDs.
Dedicated for permanent use in desktop environments

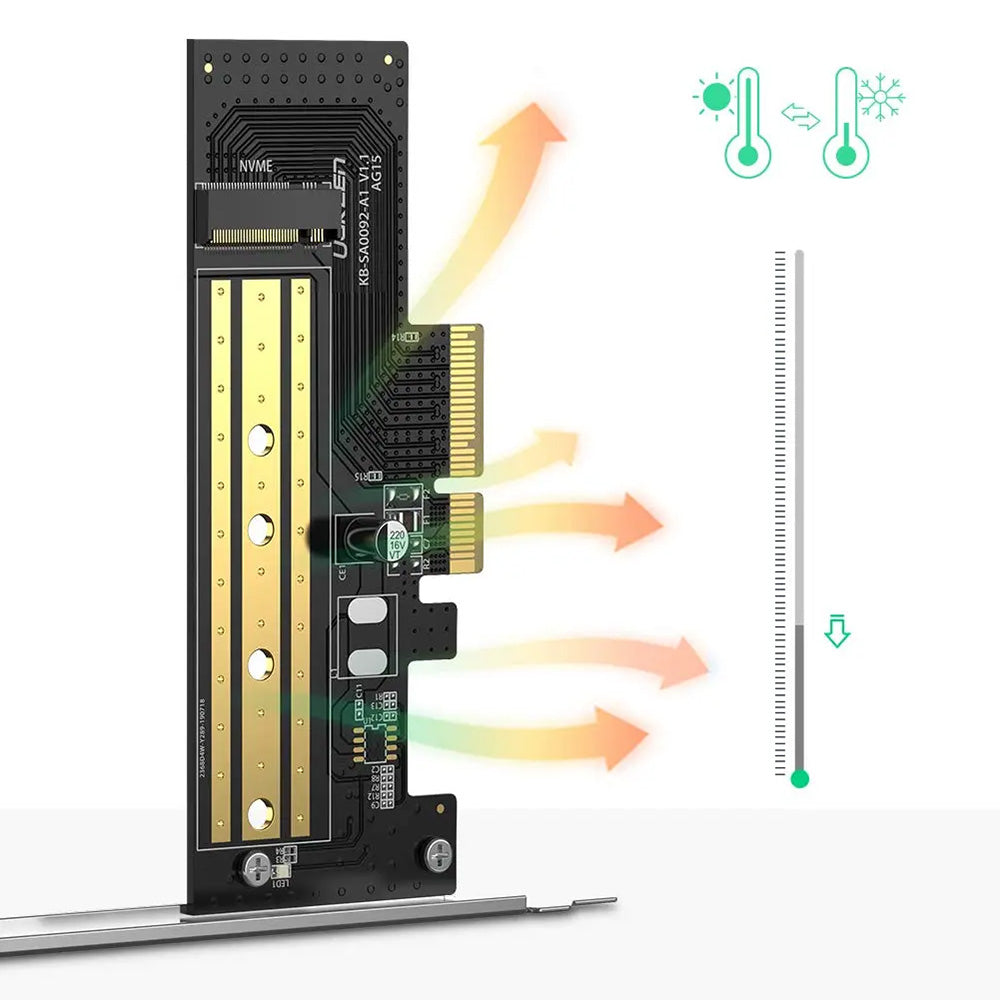

This product is built on a multi-layer PCB and includes built-in electronic protections. The design reduces interference.
Specifications:

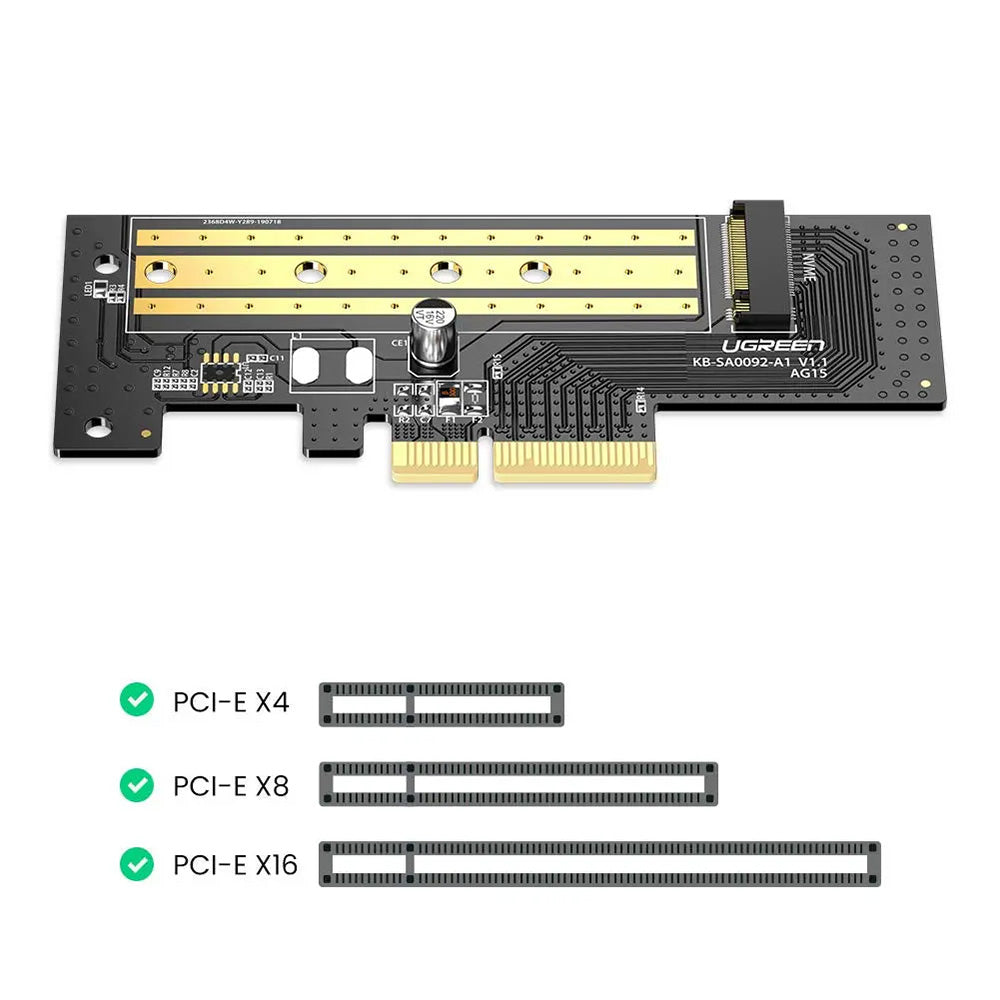

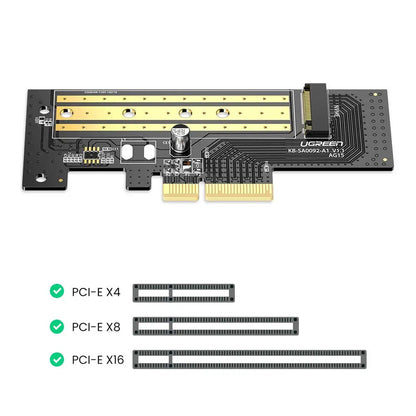

PCI Express Interface: PCIe 3.0 x4, also compatible with PCIe 2.0/1.0;
Type of compatible SSD: M.2 NVMe SSD (M-Key);

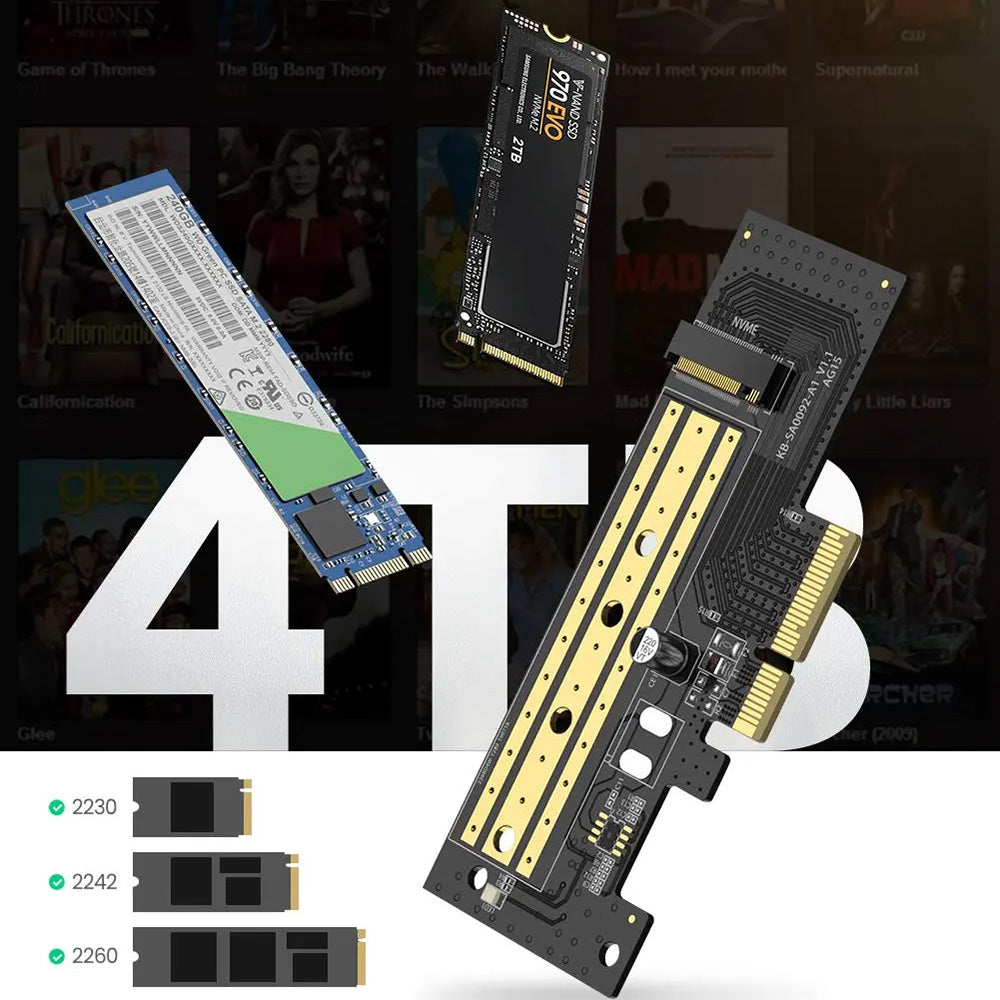

Accepted SSD dimensions: 2230, 2242, 2260, 2280;
Maximum transfer speed:
32Gbps for NVMe;
6Gbps for NGFF;
Operating system compatibility: Windows, macOS, Linux;
Built-in protections: overcurrent, overvoltage, short circuit, EMI;
Operating temperature: 40 C to +85 C;
Dimensions: 116.8 x 47mm (PCB) and 119mm (PCIe bracket);
Weight: 100g.
