Presentation
| Product range | FNB58 |
| Product type | Voltage Tester |
Sale package
| Pack | Blister |
| Content | Voltage Tester |
| Product status | New |

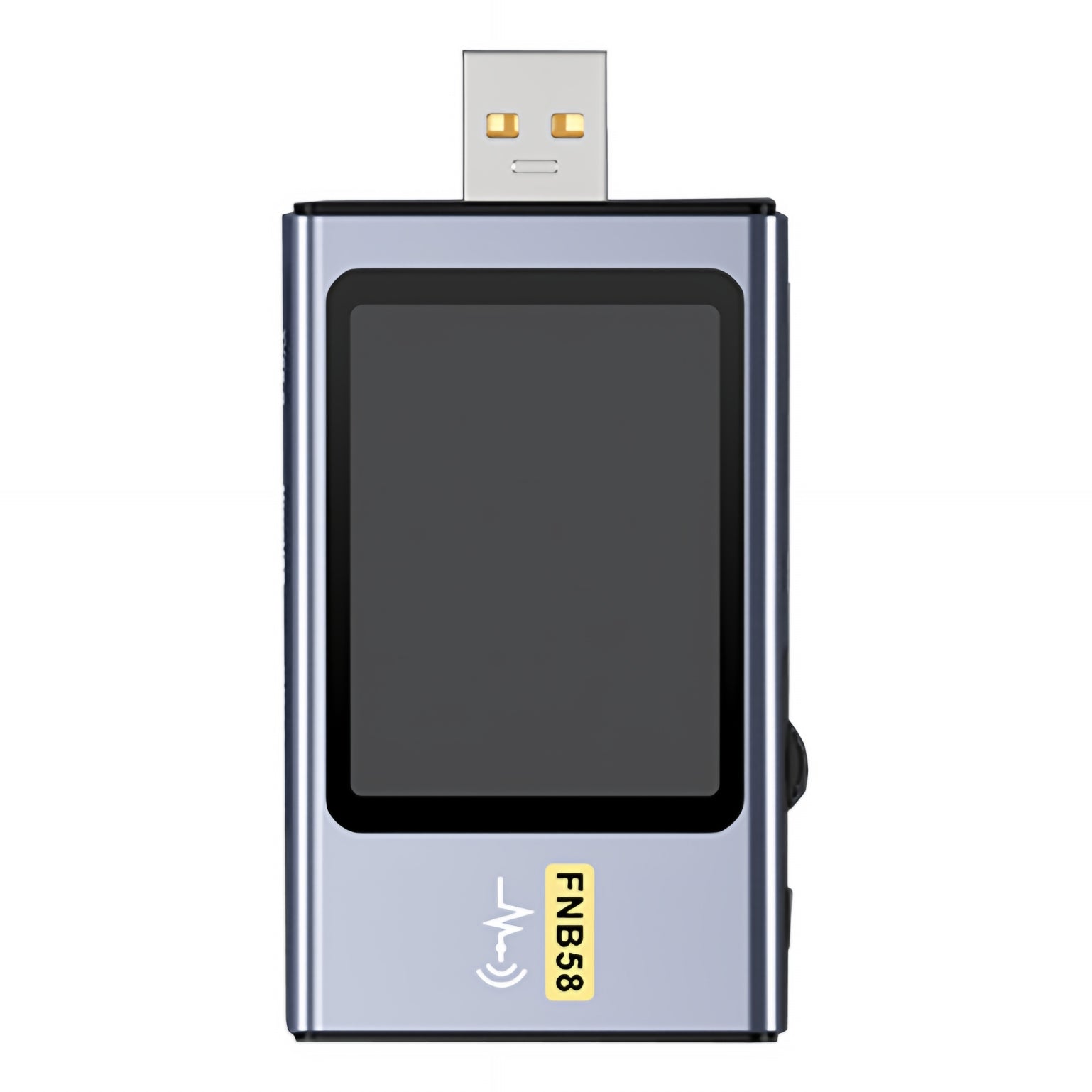

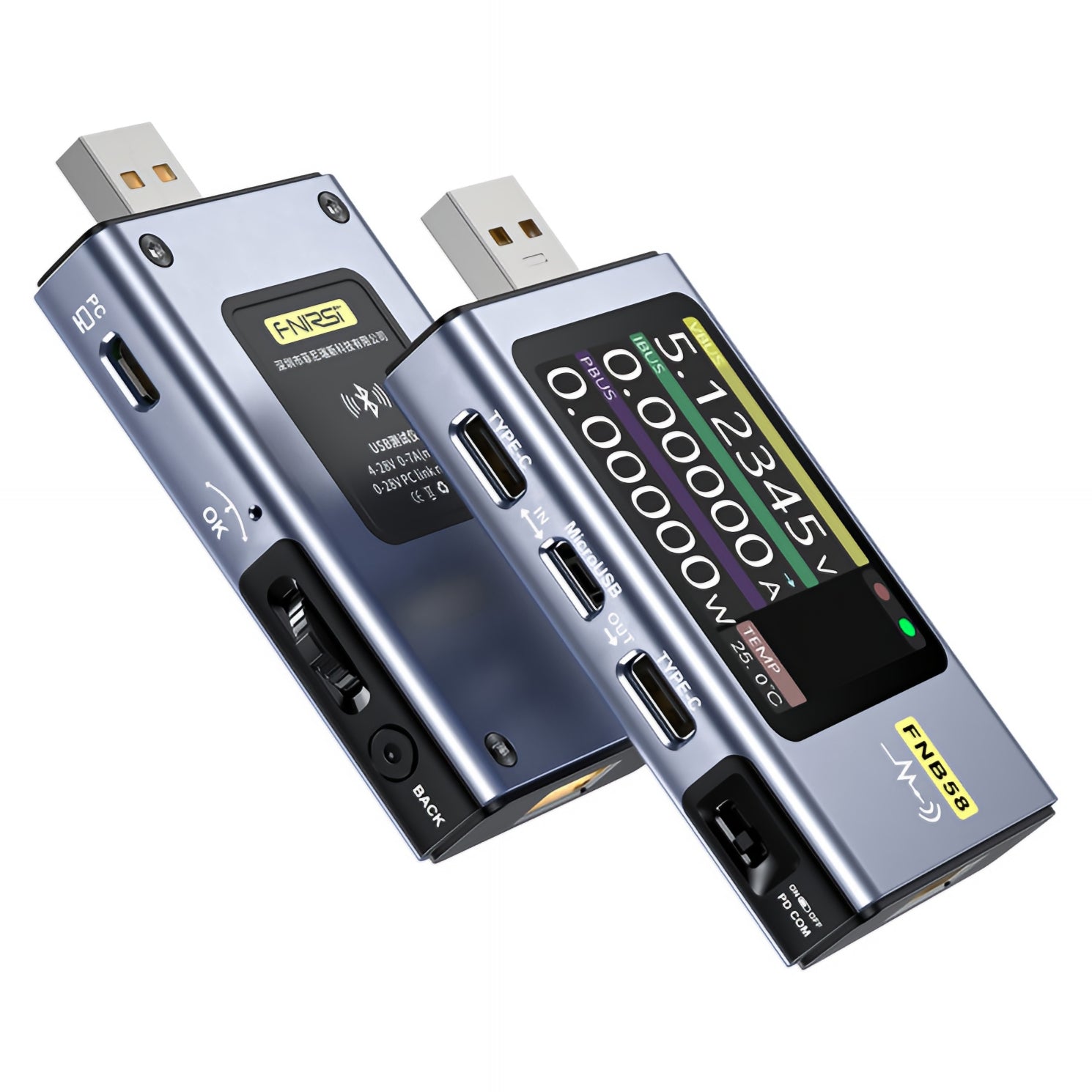

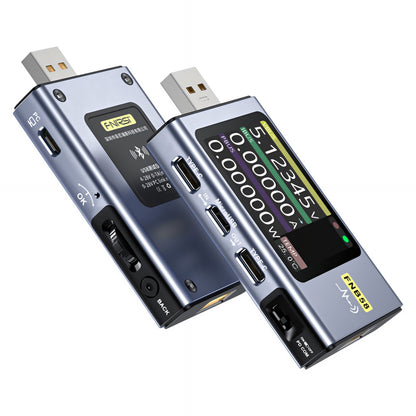

Fnirsi FNB58 Voltage Tester
The Fnirsi FNB58 BT voltage and current tester is the ideal and compact solution for technology enthusiasts and service technicians who want full control
and advanced diagnostics of the charging process. Equipped with a generous 2-inch LCD screen with a remarkable resolution of 0.0001, this device
instantly detects the smallest fluctuations in voltage, current, or power and analyzes charger quality by measuring mains ripple.
The gadget offers extended universal compatibility, supporting the latest fast charging protocols such as Power Delivery 3.1
up to 28V, PPS, Quick Charge, SuperVOOC, or Dash, and has the ability to read data from E-Marker chips of cables up to 240W
to measure their internal resistance. With stable Bluetooth connectivity allowing data monitoring
through dedicated apps and smart functions such as offline recording of charging graphs for up to 9
hours or battery capacity calculation, this robust tester with 24-pin copper contacts
becomes a complete diagnostic center to prevent damage to your equipment.
Features:
- Screen: 2.0-inch color LCD
- Measurement resolution: high precision of 0.0001
- Interfaces and ports: USB-A (input and output), USB-C (input and output with copper pins), Micro USB (input), dedicated port for PC connection
- Protocol compatibility: PD 2.0, PD 3.0, PD 3.1 EPR AVS up to 28V, PPS, QC 2.0, QC 3.0, FCP, SCP, AFC, PE, DASHVOOC, SuperVOOC
- Cable detection function: reads E-Marker chip data for PD cables up to 240W and recognizes DASH cables
- Analysis and diagnostics: power ripple measurement, real-time waveform display, and automatic protocol detection
- Data recording: internal memory for offline recording of graphs for up to 9 hours and storage of 10 data sets
- Smart functions: built-in algorithm for battery capacity calculation and alerts for overvoltage or overcurrent
- Wireless connectivity: Bluetooth technology for data synchronization with mobile app and PC (no iOS support)
- Dimensions: 42 x 13 x 82 mm
